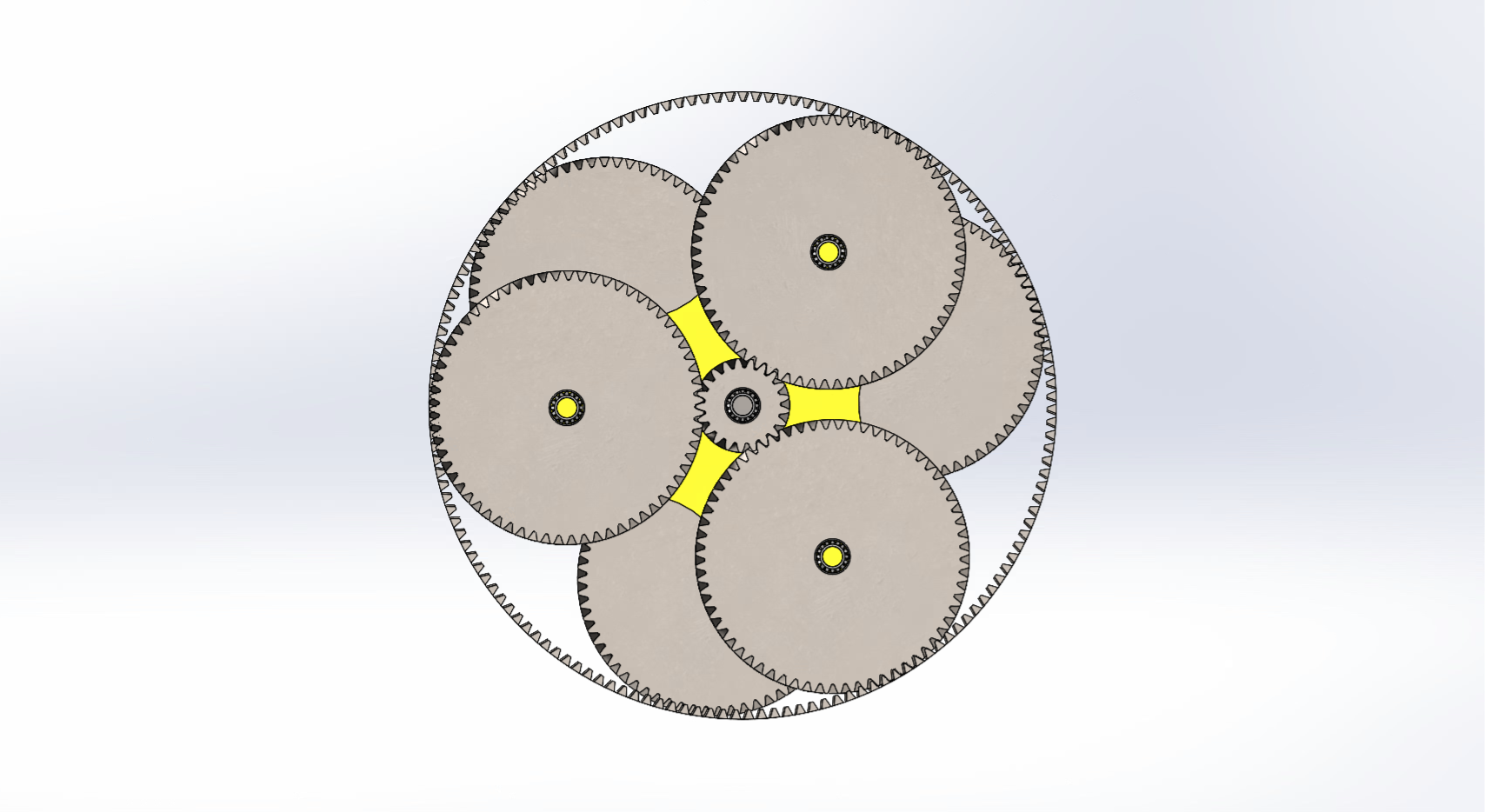

This assembly was designed for a gearbox. It contains a compact two-stage planetary gearbox using helical gears, ball bearings, and spline couplings to achieve a 27 RPM to 1800 RPM speed increase, matching generator requirements. Gear ratios were optimized (≈8.17 per stage) to ensure consistent torque transmission, with gear diameters scaled to 184 mm (planet) and 536 mm (sun) using a module of 8.
